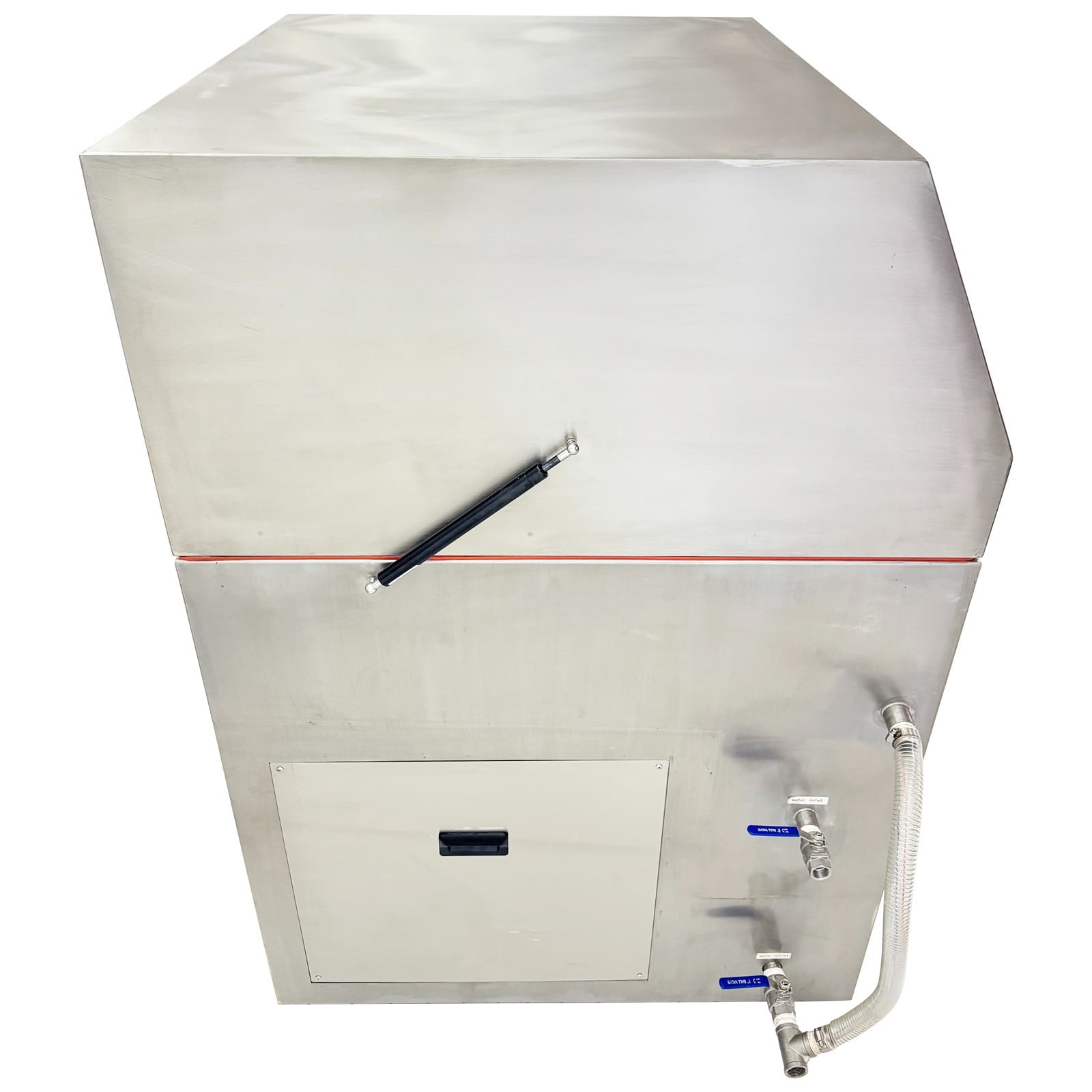

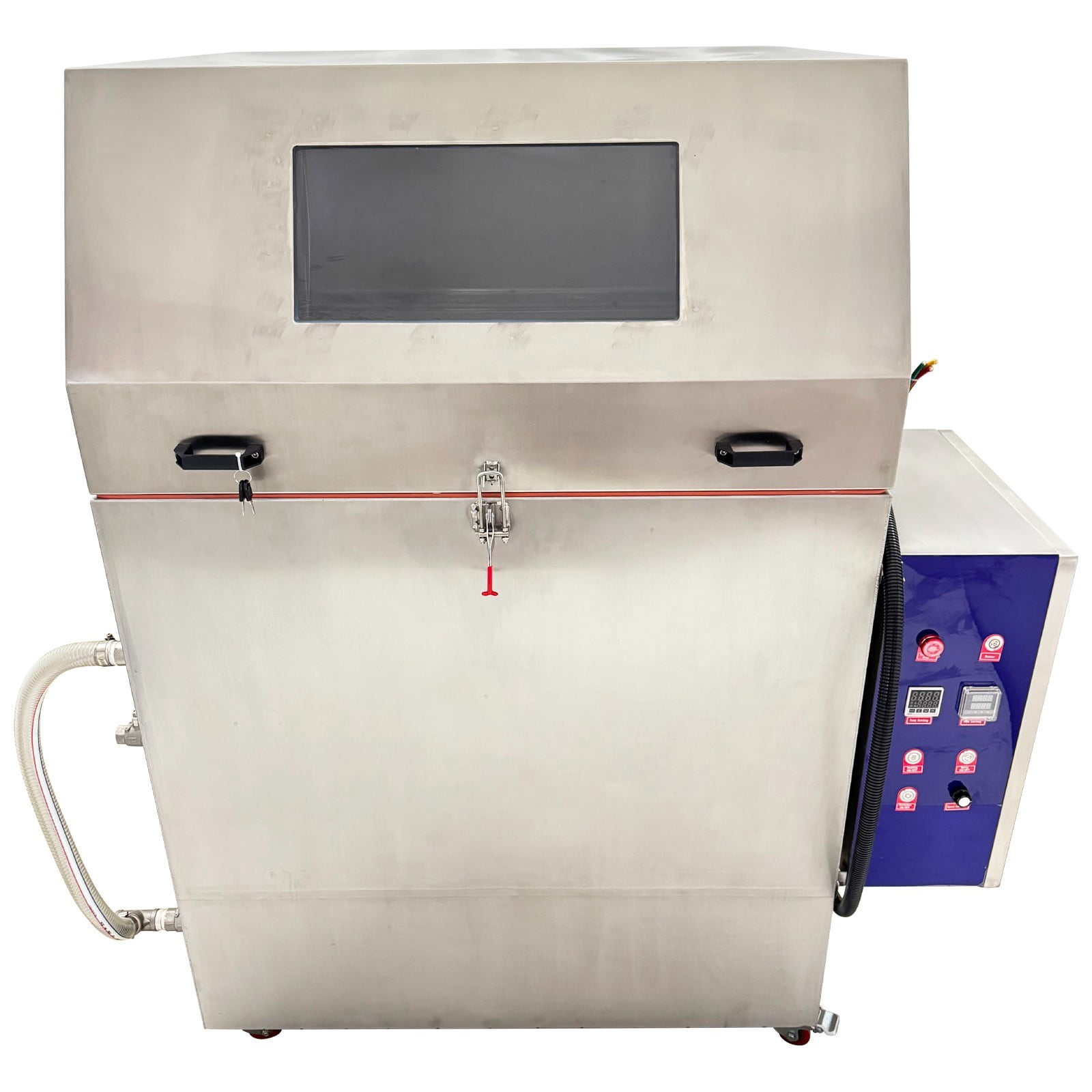

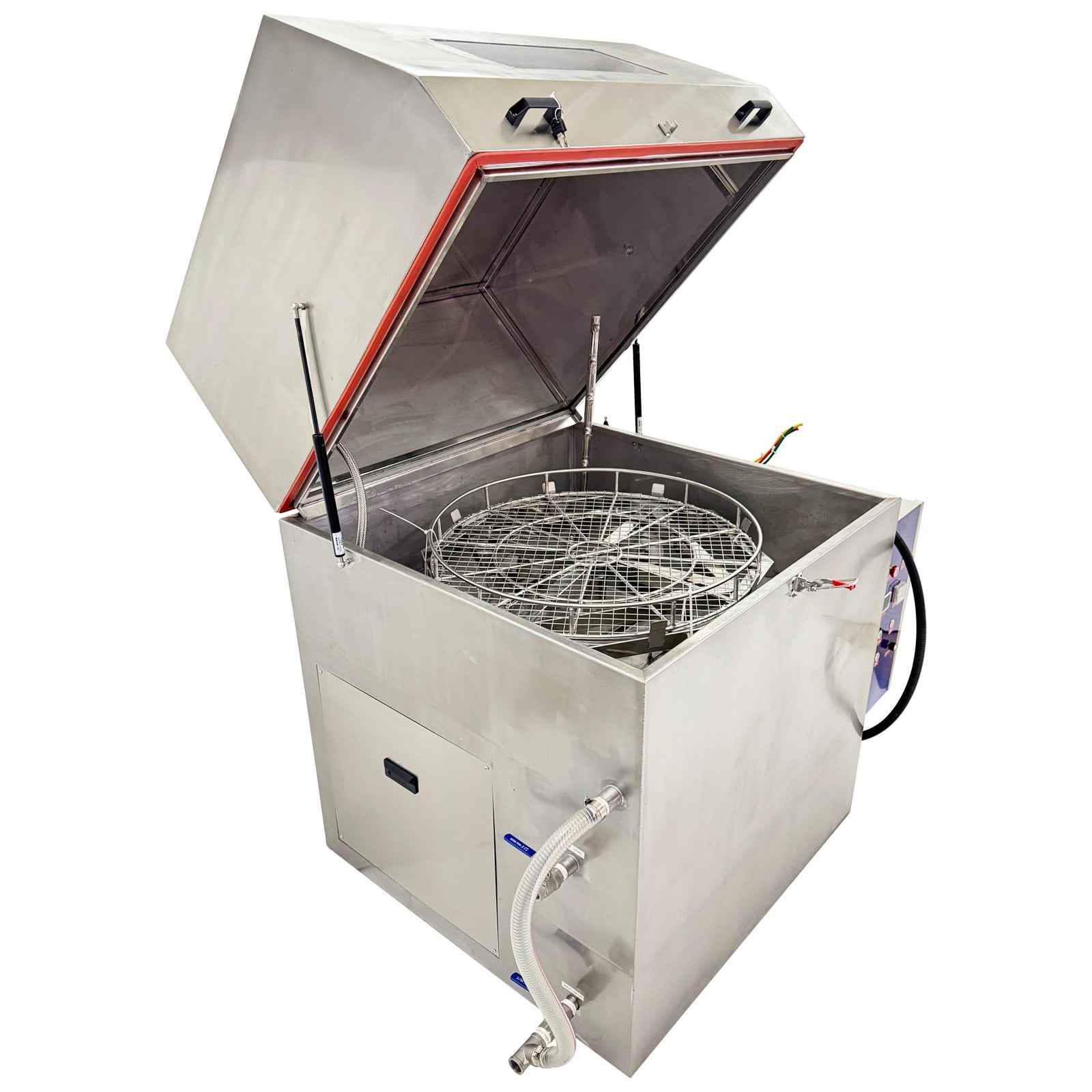

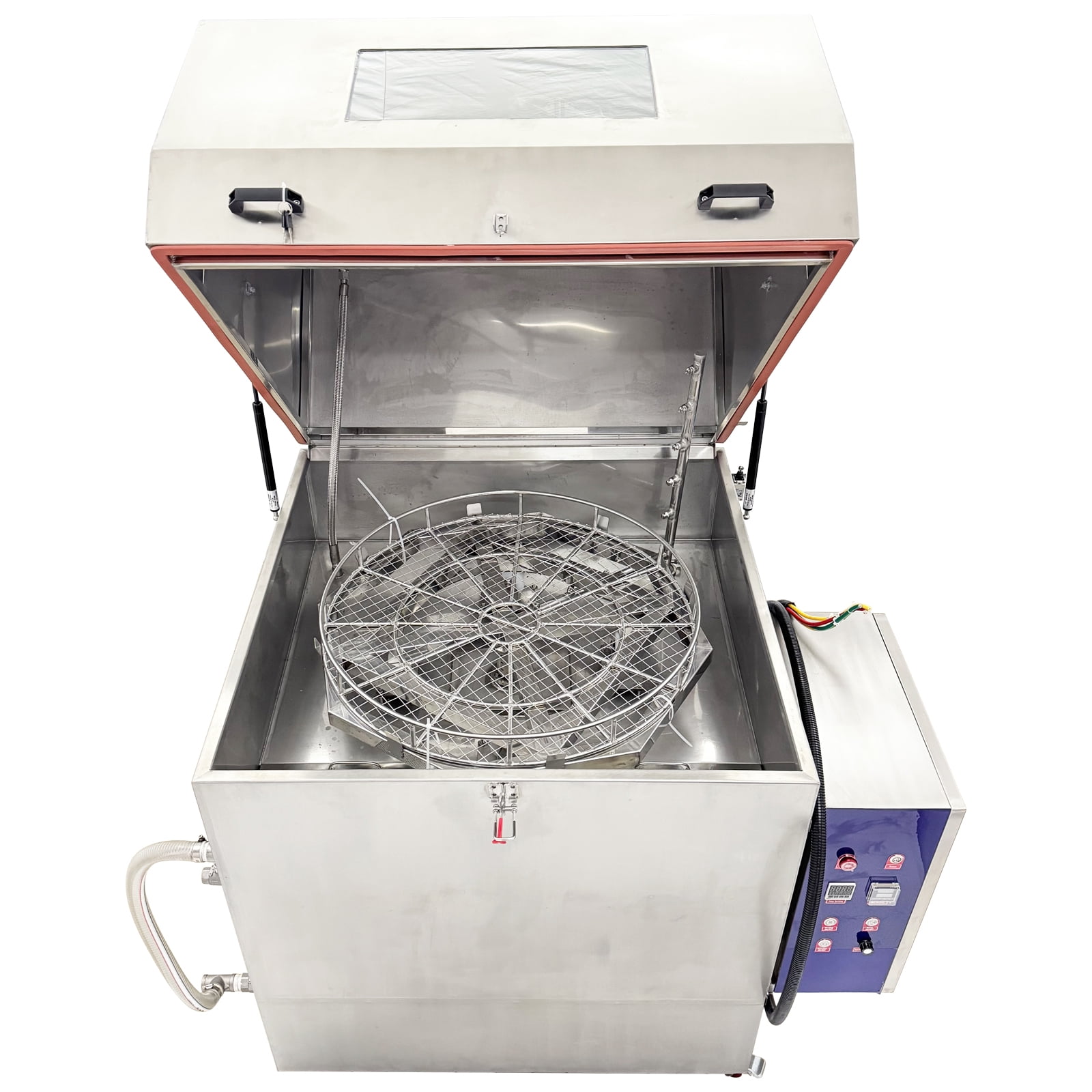

Spray Wash Cabinet Part Washer High Pressure Rotary Spraying Cleaning Machine for Oil and Dirt removal 220V 3PH

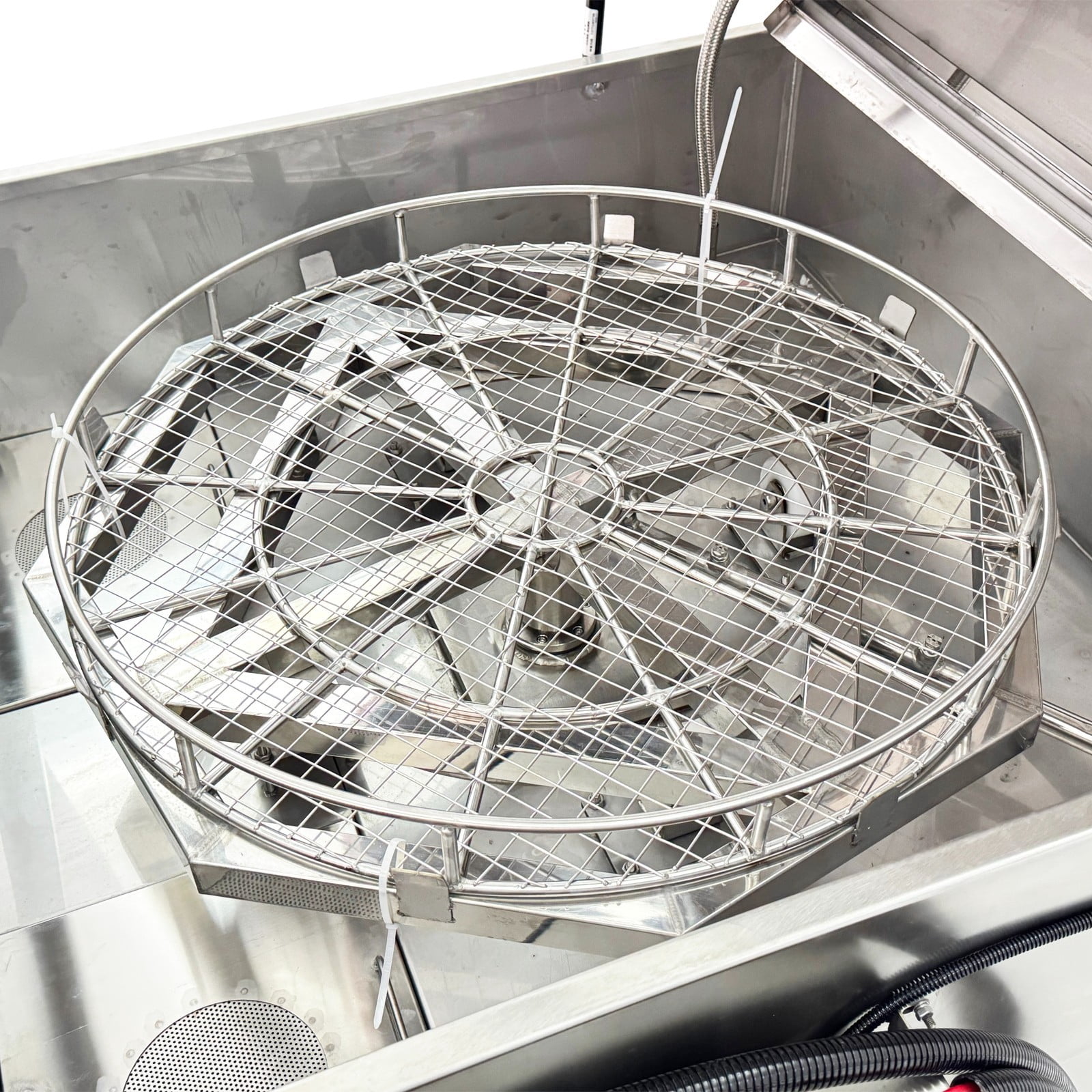

<p>Note: There is no plug on the power cord. Please let a professional electrician conduct wiring operation.<br>Product Overview:<br>The spray wash cabinet is a professional spraying cleaning machine specially designed for spraying the cleaning solution to the workpiece surface to remove oil stains, iron scraps and other dirt. It adopts the combination of high-pressure flow and mechanical rotation of Φ800mm cleaning basket, achieving 360˚ efficient and thorough cleaning of large metal workpieces. The rotary spraying cleaning machine can be widely applied to oil and chip removal and cleaning of hubs, brake discs, castings, parts, fasteners and other parts and is suitable for the industries of automobile accessories, hardware, etc.</p> <p>Product Parameters:<br>Cleaning basket:<br>Diameter: 31.5in (800mm)<br>Working height: 19.7in (500mm)<br>Load capacity: 551LB (250kg)<br>Electric motor: 0.04kW<br>Rotating speed: 5-10R/Min<br>Power supply: 220V 60Hz 3-phase<br>Volume of spraying tank: 26.4 us gal (100L)<br>Heating power: 6kW<br>Power of water pump: 1.5kW<br>The material of the inner groove that comes into contact with the liquid: SUS304 stainless steel<br>Body shell material: US201 stainless steel<br>Spraying pressure: 0.3-0.5MPa<br>Packing dimension: 62.99*47.24*68.90 inches (160*120*175cm)<br>Net weight / Gross weight: 639.3LB (290kg) / 854.3LB (387.5kg)</p> <p>Precaution:<br>1. Press the brakes of the casters to ensure that the machine is installed stably, and connect the power cord and ground wire as required.<br>2. Install the cleaning machine in a well-ventilated and dry place.<br>3. Do not let the solution splash onto the electrical parts when filling the liquid.<br>4. Make sure that the heating tube submerges in the liquid before turning on the heating. When there is no cleaning liquid or the liquid level does not reach the working liquid level, it is forbidden to start the heating, otherwise the heating tube will be damaged.<br>5. When there is too much sediment in the cleaning tank, it should be flushed and removed in time.<br>6. When there is cleaning liquid in the cleaning tank, do not move the equipment to prevent the cleaning liquid from overflowing.<br>7. Close the cover to reduce noise when cleaning. When opening the cover, be careful of water droplets and steam burns to the skin.</p> <p>Operation Method:<br>Before starting the machine, please confirm:<br>1. The machine is installed stably and the shell is well grounded.<br>2. Connect the main drain pipe under the machine body to the factory's drainage system.<br>3. Connect the power cord correctly and firmly as required.<br>4. Inject cleaning fluid to the working liquid level.</p> <p>Item included (057348):<br>Techtongda Spray Wash Cabinet 220V</p> <h3><br><br><br></h3> <p><br><br></p>

• Thorough Cleaning: Adopting the high-pressure spraying and 360˚ rotation design, capable of cleaning the gaps, blind holes, grooves and other positions, removing the oil stains and iron scraps thoroughly, and improving the cleaning pass rate.
• High Efficiency: Capable of being operated by a single person, greatly improving the cleaning efficiency, saving time and labor, reducing the energy and material consumption and enhancing the cost performance.
• Good Safety: Crafted with stainless steel materials, resistant to corrosion, easy to clean; adopting the openable cover and observation window, facilitating cleaning monitoring and daily maintenance.
• The control panel integrates the functions of digital display, temperature and time setting, speed regulation, heating/spraying/rotation control, emergency stop and buzzer, facilitating precision control over temperature and time, achieving safety protection and stable operation and improving the adaptability and reliability.
• The cleaning machine can effectively clean various workpieces, such as bearings, hubs, castings, brake discs and rods, and ensure oil stains and other scraps are removed completely.
